8L engine truck supports the largest payloads in its class
The 8-liter engine is light-weight, compact, yet powerful and torquey, and reduces the weight of the chassis. In addition, the adoption of a short cab Quon model makes it possible to transport cargo with a legal length of more than 10 m within the loading platform.
Light-weight, compact and powerful “GH8 engine”
With downsized engine achieving light-weight and compact, and simpler structure maintaining high reliability, it generates powerful torque in the whole area. It both achieves light-weight as well as high payload and powerful drives. It complies with Japanese 2016 exhaust gas regulations and all high payload models achieve +5% over the fuel efficiency standards.
Improved payload of more than 500 kg*
Two types of body, standard and high payload are available for Perfect Quon dry wings. The high payload model, with a lighter chassis, has its payload increased by approximately 500-700 kg.
1. CD 6×2 Standard model 14,600 kg/High payload model 14,800 kg
2. CG 8×4 Standard model 14,500 kg/High payload model 14,700 kg
*Comparison to UD GH11 engine mounted truck
Tipper: A payload of 10 tons for the standard model
A payload of 10 tons is now possible with the standard model. For the high payload model, a telescopic cylinder type rear-dump is now available.
The payload for the standard model is more than 9.8 tons.
Moreover, for the high payload model, a payload of over 10 tons is ensured. A simple structure of a telescopic cylinder type rear-dump can be chosen.
CW 6×4 Standard model 9,800-10,000 kg/
High payload model 10,400 kg

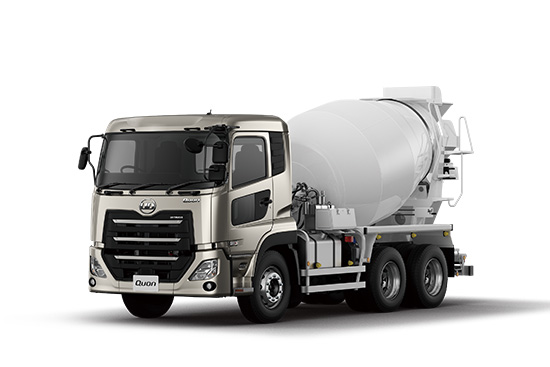

Mixer: Drums available of 4.4 ㎥ and 4.5 ㎥ capacity
For the mixer truck, two types of mixer drum can be chosen. The standard type drum capacity is 4.4 ㎥, the highest capacity in the class of 4.5 ㎥ is also available.
